RAPID & ACCURATE

BATTERY DIAGNOSIS powered by AI

1. AI-based real-time solution: in-line battery inspection

- EIS measurement and adjustment

- Data collection and EIS analysis

- Rapid and precise in-line battery inspection based on artificial intelligence

2. Real-time monitoring and diagnosis for EV batteries

- 인공지능 기반 사용 후 배터리 상태 진단 솔루션

- 클라우드 서비스 기반 재사용 배터리 상태 감시 및 수명 예측 솔루션

3. Instant diagnosis and prediction for the entire life cycle of used batteries

- An AI-based solution to diagnose the health of the used battery

- Cloud-based monitoring and lifetime prediction

4. H2 Equipment (hydrogen-related)

1) PEM Station

- Equipment for fuel cell experiment

2) Water Electrolysis System

- Equipment for the experimental environment of water electrolysis reactors using MEA

Promotional video *To be updated.

RAPID AND ACCURATE

ENERGY DIAGNOSIS  powered by AI

mobile background

1. AI-based real-time in-line battery inspection solution

- EIS measurement and adjustment

- Data collection and EIS analysis

- Rapid and precise in-line battery inspection based on artificial intelligence

mobile background

2. Real-time monitoring and diagnosis for EV batteries

- Processing of transmitted raw data

- Ai- based battery status diagnosis

- Communicate battery status to user

mobile background

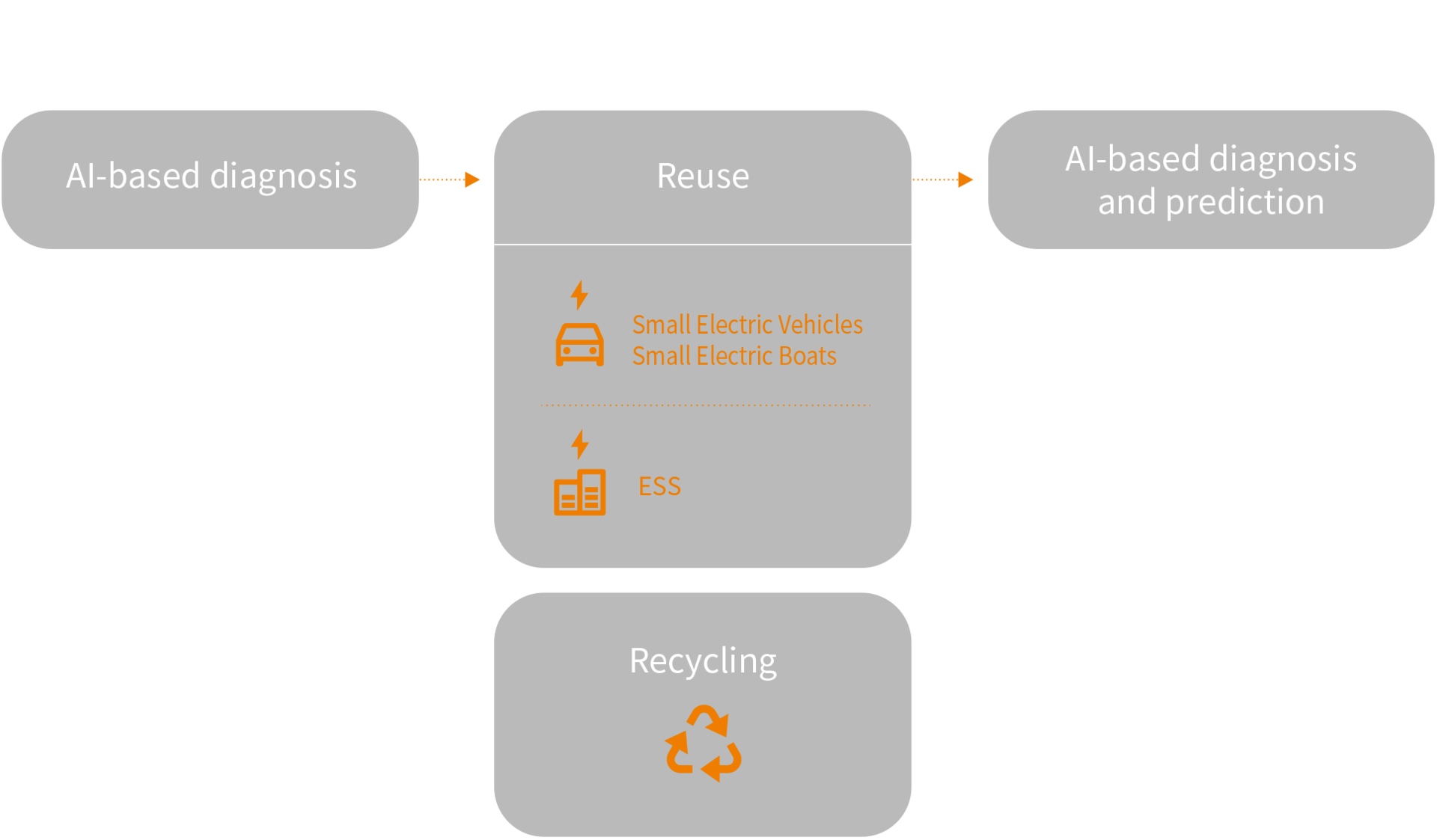

3. Instant diagnosis and prediction for the entire life cycle of used batteries

- Processing of transmitted raw data

- AI-based battery status diagnosis

- Communicate battery status to user

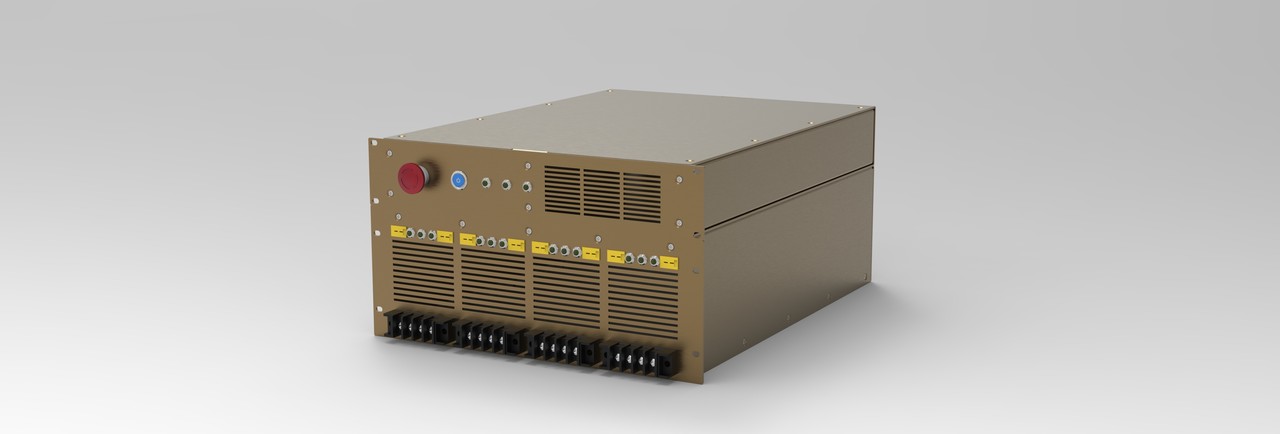

4. Battery Tester (Charging/Discharging)

FEATURE

- Battery Charging Test

- Battery Discharging Test

- Battery Cell Temperature Measurements ( 2 TC per CH )

- CYCLE TEST UI Program

- Remote setup and Monitoring

- 4CH / UNIT and max 20CH

SPECIFICATION

- AC Power input : 220V 16A 1 Phase

- Maximum Power consumption : 2KW

- Charging Voltage : 0 ~ 5V / CH

- Charging Current : 50A / CH

- Operation Mode : CC, CV, CP

- Communication : Ethernet 10/100BT

- Equipment Size : 426 x 550 x 267mm (Length x Width x Height)

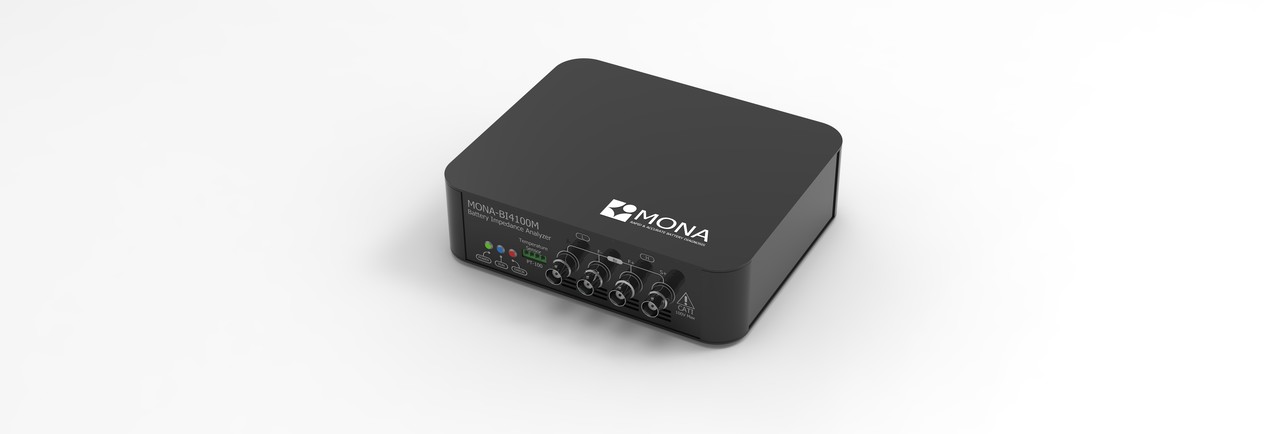

5. EIS

FEATURE

- BATTERY Cell / Module Test Station

- Impedance & Voltage Measurement

- Impedance Measurement

- Automation experiments

- Temperature Measurement

SPECIFICATION

- Frequency Range : 1KHz ~ 0.1Hz

- Impedance Range : 3mΩ, 10mΩ, 100mΩ

- Measurement Current : 1.5A, 500mA, 50mA

- Measurement Voltage (Cell) : 5V

- Measurement Voltage (Module) : ~ 100V

Promotional video *To be updated
